Multi Game (IGT, M0000247)

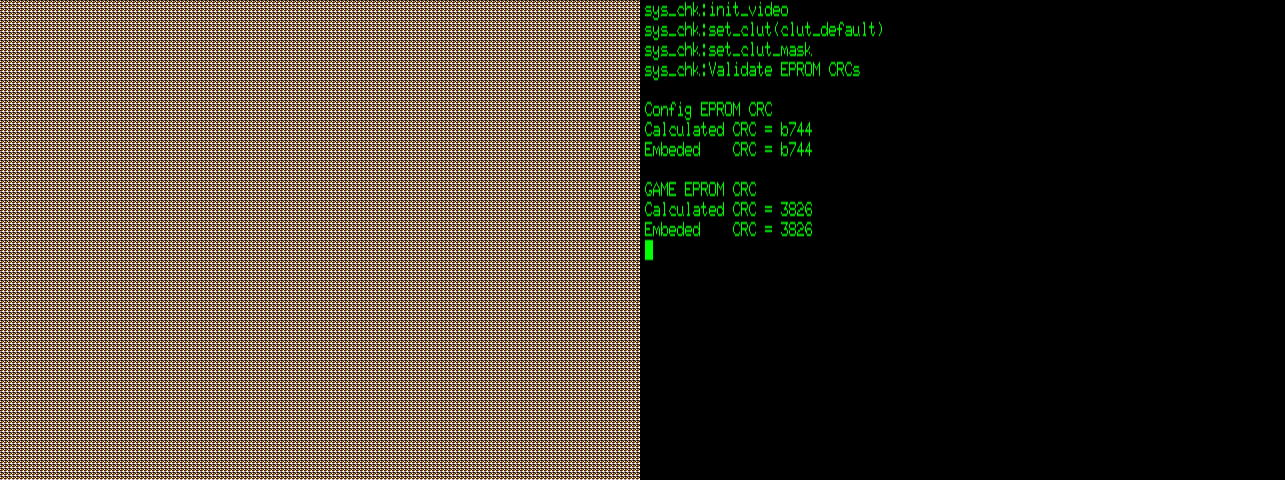

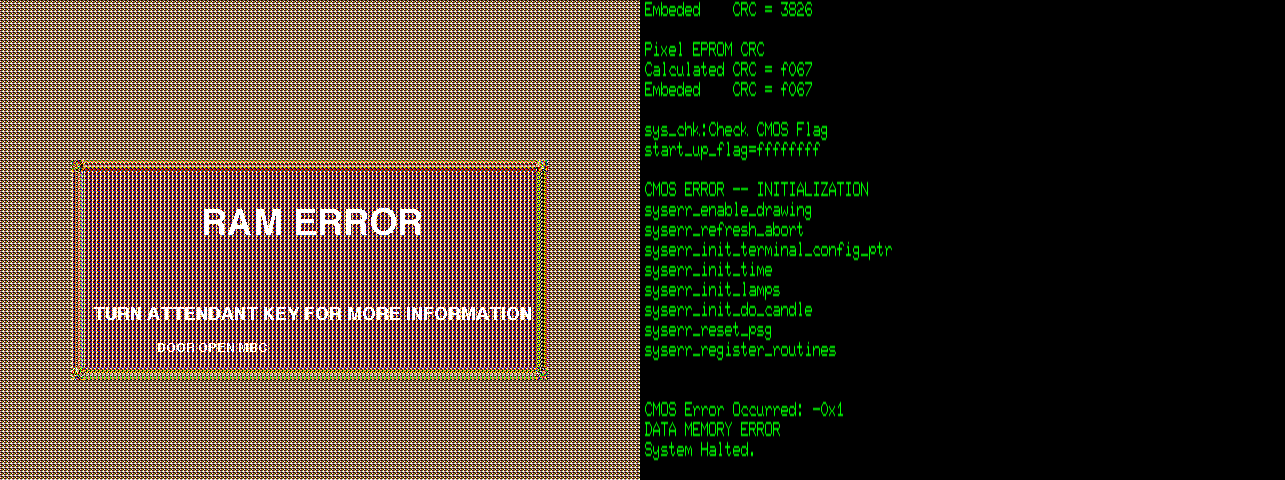

Screenshots
Download Details
| split set | igtmg247.zip 3.04m |
| bios/device | ym2413.zip 313.00b |
| merged set | igtmg247.7z 2.57m |
| standalone set | igtmg247.7z 2.57m |
Driver Details
| source | igt/gkigt.cpp |
| status | preliminary |
| emulation | preliminary |
| savestate | unsupported |
| type | sound |
| status | unemulated |
Screen Details
| display | screen |
| type | raster |
| orientation | horizontal |
| width | 640px |
| height | 480px |
| refresh | 60mhz |
| display | diag:terminal:terminal_screen |
| type | raster |
| orientation | horizontal |
| width | 640px |
| height | 240px |
| refresh | 50mhz |
Input Details
| player | 1 |
| type | keyboard |
| buttons | 73 |
| directions | N/A |
Chipset Details
| name | Intel 80960KA |
| clock | 22.89mhz |
| name | Speaker |
| clock | N/A |
| name | Beep |
| clock | 1.95khz |
| name | Speaker |
| clock | N/A |
| name | YM2413 OPLL |
| clock | 3.41mhz |
| name | Yamaha YMZ280B PCMD8 |
| clock | 16.15mhz |
ROM Details
| name | size | crc |
|---|---|---|
| m0000247 base,1-4002.bin | 512.00k | 03cf1431 |
| g0000397 gme1 1 of 2,2-80.bin | 1.00m | c9429c7b |
| g0000397 gme2 2 of 2,2-80.bin | 1.00m | e56c617e |
| c0000265 cg1 1 of 4,2-x0.bin | 512.00k | nodump |
| c0000265 cg2 2 of 4,2-x0.bin | 512.00k | nodump |
| c0000265 pxl1 3 of 4,2-80.bin | 1.00m | 88ed5614 |
| c0000265 pxl2 4 of 4,2-80.bin | 1.00m | b535d175 |
| swc00046 snd1 1 of 2,2-80.rom1 | 1.00m | 8213aeac |
| swc00046 snd2 2 of 2,2-80.rom2 | 1.00m | a7ef9b46 |
