Player's Edge Plus (PS0623) Black Cherry Slots
Game Information
manufacturer | IGT - International Game Technology |
year | 1996 |
genre | Fruit Machines |
downloads | 2 |

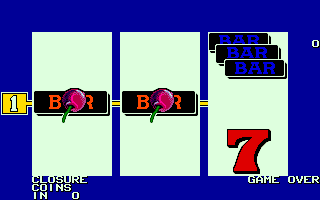

Screenshots



Download Details
split set | peps0623.zip 53.12k |
merged set | peps0623.7z 43.19k |
standalone set | peps0623.7z 43.19k |
Game Details
IGT Player's Edge Plus ROM kit published 29 years ago:
Black Cherry (c) 1996 IGT [International Game Technologies].
3-reel, 1-line, 3-coin video slot.
- TECHNICAL -
GAME PROGRAM: PS0623
CHARACTER PROGRAM: CG:2249
GAME VERSION: 586
RTP:
Payout 90.04%.
INITIALIZATION:
- Be sure the upper door is opened.
- CMOS DATA will be displayed.
- Press and hold the self-test button until a sound is heard.
- Close the upper door.
- Press the Jackpot Reset button.
- Open the upper door.
- EEPROM DATA will be displayed
- Press the self-test button again.
- Close the upper door.
- CONTRIBUTE -
Edit this entry: https://www.arcade-history.com/?&page=detail&id=300327&o=2
Black Cherry (c) 1996 IGT [International Game Technologies].
3-reel, 1-line, 3-coin video slot.
- TECHNICAL -
GAME PROGRAM: PS0623
CHARACTER PROGRAM: CG:2249
GAME VERSION: 586
RTP:
Payout 90.04%.
INITIALIZATION:
- Be sure the upper door is opened.
- CMOS DATA will be displayed.
- Press and hold the self-test button until a sound is heard.
- Close the upper door.
- Press the Jackpot Reset button.
- Open the upper door.
- EEPROM DATA will be displayed
- Press the self-test button again.
- Close the upper door.
- CONTRIBUTE -
Edit this entry: https://www.arcade-history.com/?&page=detail&id=300327&o=2
Driver Details
source | igt/peplus.cpp |
status | good |
emulation | good |
savestate | supported |
Screen Details
display | screen |
type | raster |
orientation | horizontal |
width | 320px |
height | 200px |
refresh | 60mhz |
Input Details
player | 1 |
type | only_buttons |
buttons | 8 |
directions | N/A |
Chipset Details
name | Intel 80C32 |
clock | 9.54mhz |
name | Speaker |
clock | N/A |
name | AY-3-8912A PSG |
clock | 1.59mhz |
ROM Details
name | size | crc |
---|---|---|
ps0623_586-a6c.u68 | 64.00k | adb18dca |
mro-cg2249.u72 | 32.00k | f0dceb36 |
mgo-cg2249.u73 | 32.00k | 6b9af992 |
mbo-cg2249.u74 | 32.00k | 50a39609 |
mxo-cg2249.u75 | 32.00k | ef2fca09 |
cap2249.u50 | 256.00b | 26948c31 |
